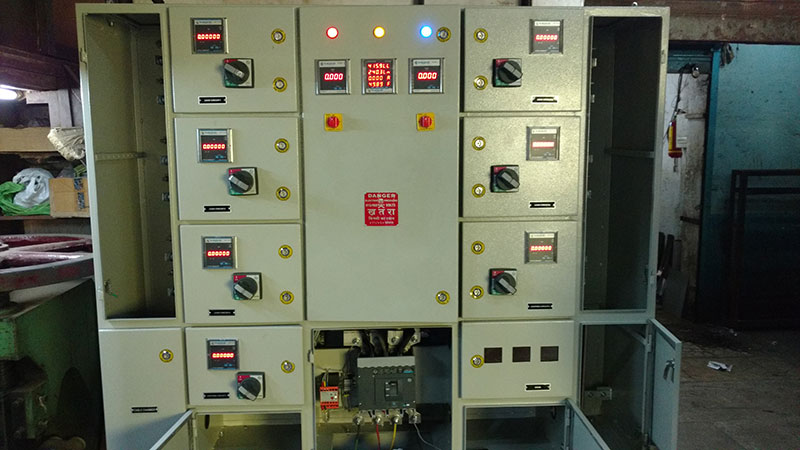

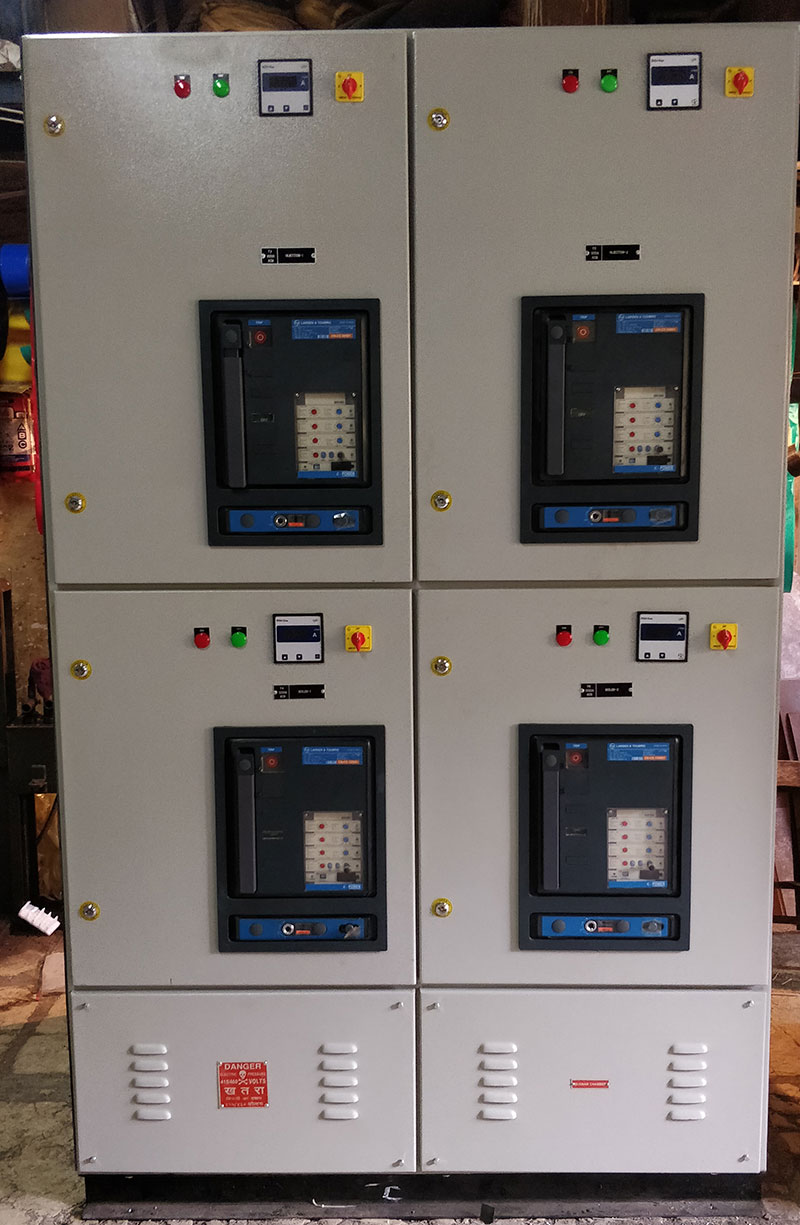

Power Control Centre (PCC) Panel
Power Control Centre Panel is a three-phase system used for distribution and control of various power sources.
| Applications | Operation, Control & protection of distribution network with or without PLC/BMS Connectivity |
| System | 3 Phase, 3 or 4 wire, 50Hz |
| Rated Current | Upto 6300 Amps |
| Operational Voltage | 110/230v 415v AC |
| Rated Insulation | 1000v |
| Rated Service Voltage | 690v |
| Ambient Temperature | 45 Deg C |
| Short Time Current | 50KA for 1Sec, 105KA peak |
| Degree of Protection | IP45-IP54 |
| Form of Sepration | Upto 3B/4B (Optional Type 5) |
| Type Tested for | Short Time Current withstand Temperature Rise Degree of Protection |

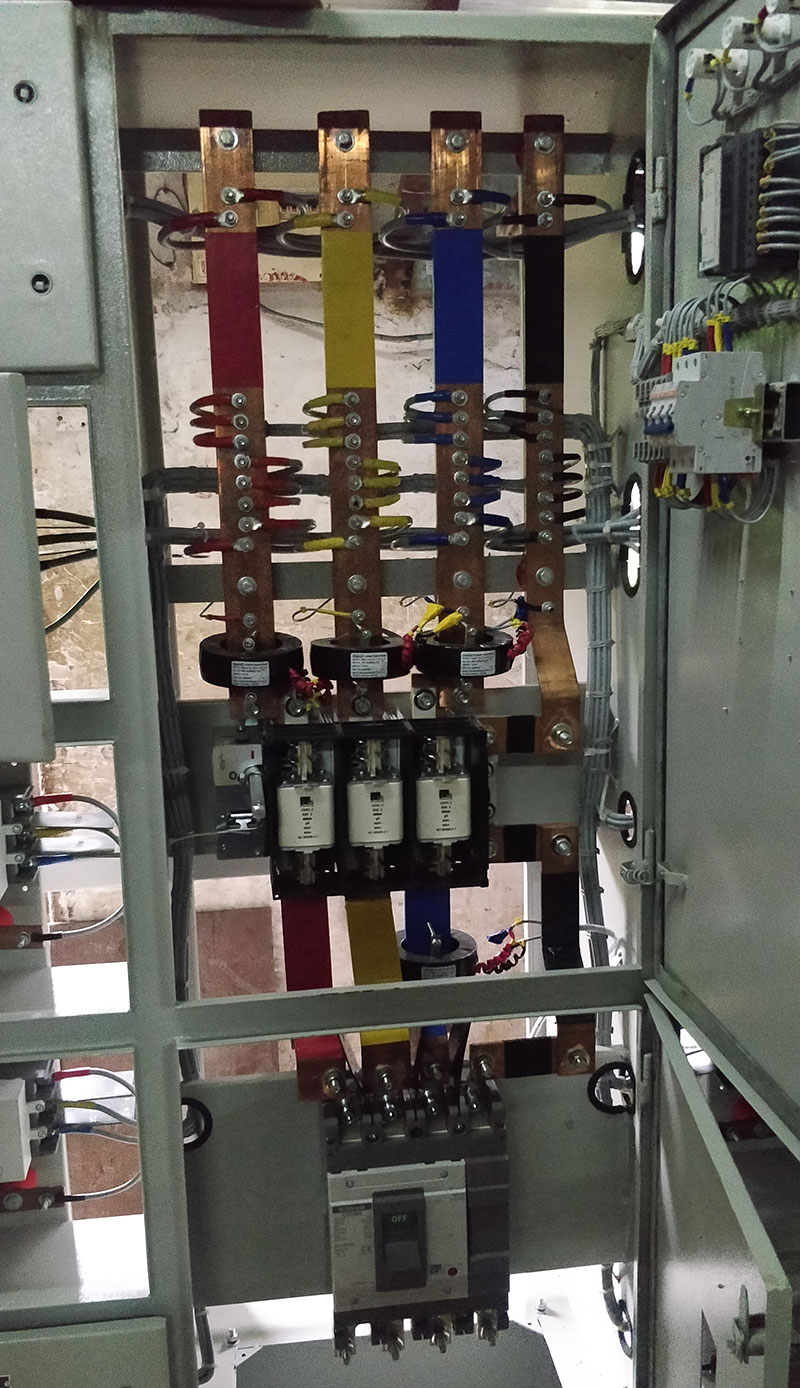

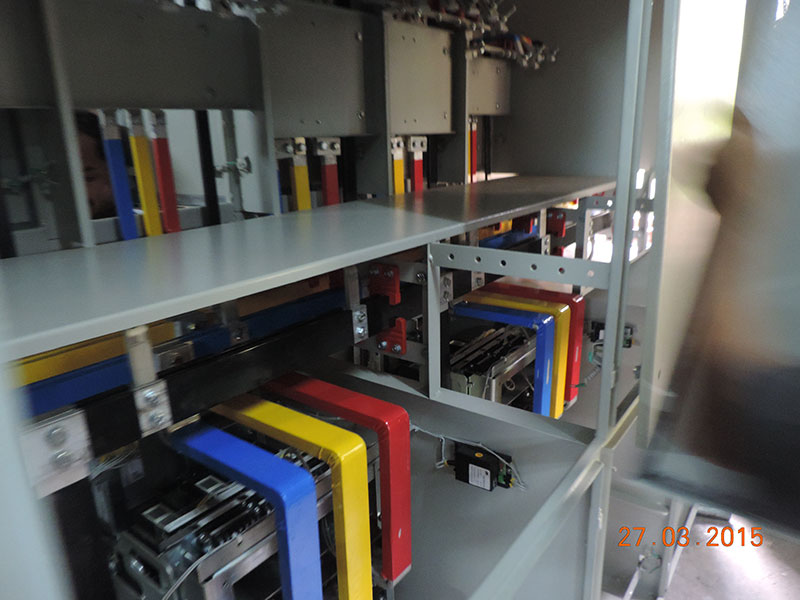

| Bus Bar System | Interleaved above 1600A |
| Bus Bar | Aluminium or Copper |
| Ref. Standard | IEC61439-12009, IS:8623 |

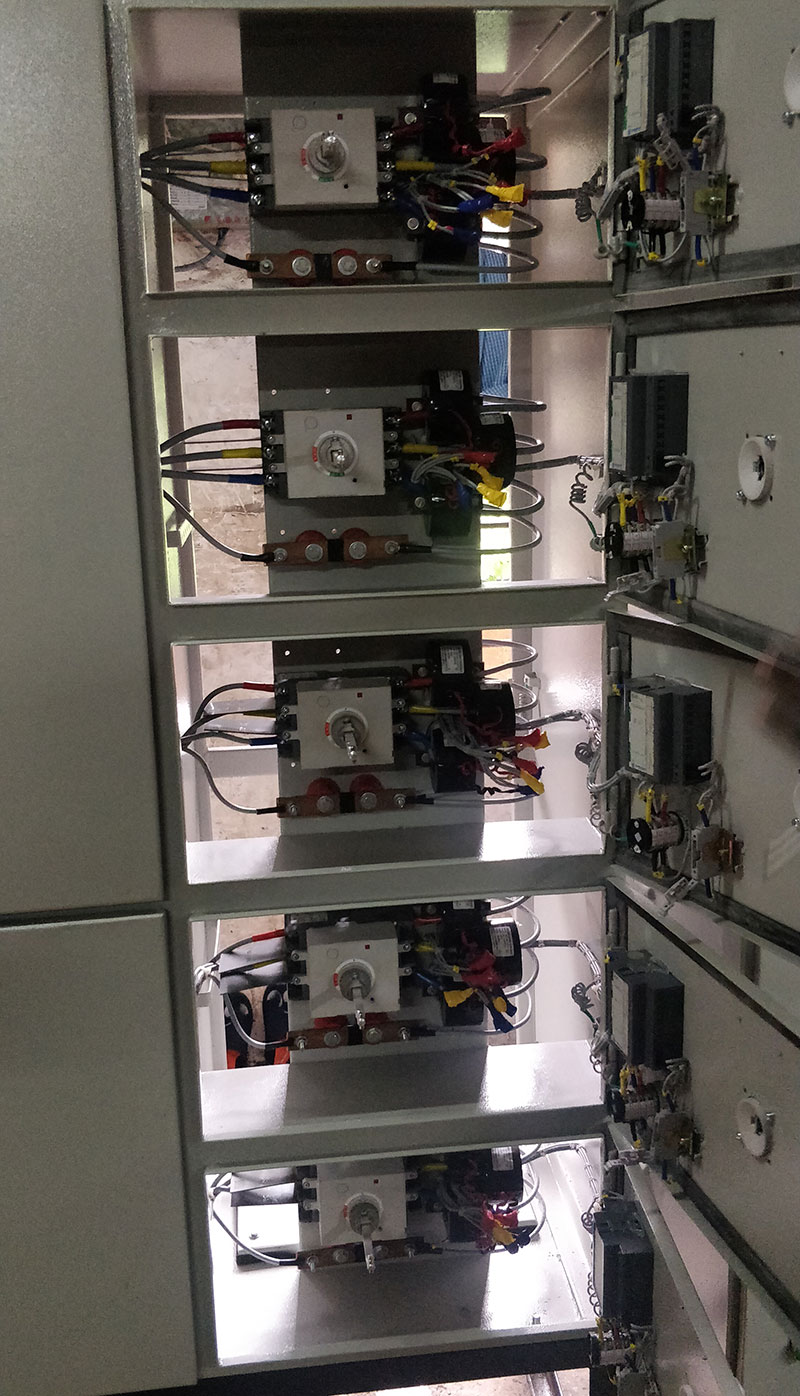

| Feeder Configuration | Fix Type |
