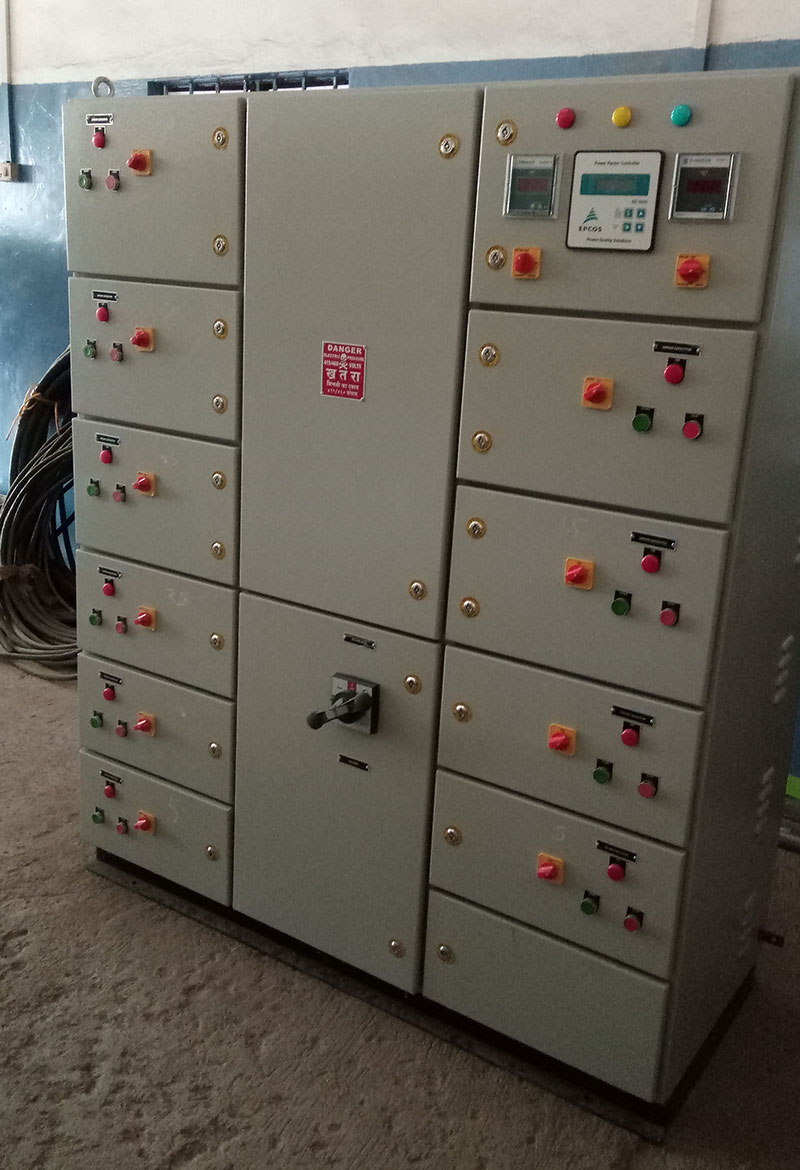

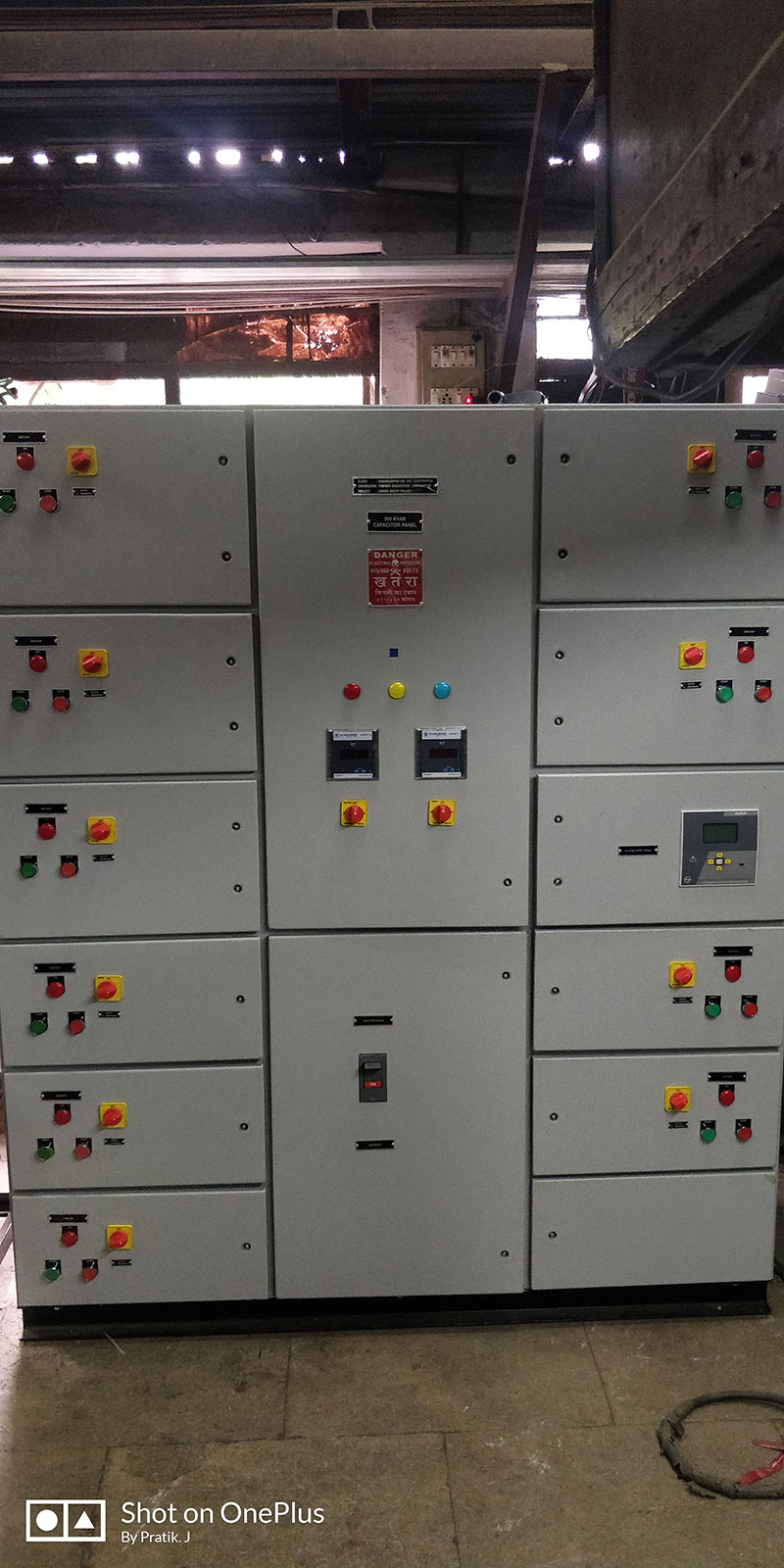

Automatic Power Factor Control (APFC) Panel
APFC Panels are used for improvement of power factor. It is necessary to achieve power factor in industries where electrical installations are meant to supply to electrical load.
Automatic as well as manual option is provided in our APFC Panels.
| Applications | Automatic Power factor correction equipment, turned capacitor banks, dynamic PFC |
| System | 415V 3 Phase, 3 or 4 wire, 50Hz |
| Rated Power | Upto 1200 KVAR |
| Rated Voltage Capacitor | 230/525v |
| Rated Insulation | 1000v |
| Rated Service Voltage | 690v |
| Ambient Temperature | 45 Deg C |
| Short Time Current | 50KA for 1Sec, 105KA peak |
| Degree of Protection | IP45-IP54 |
| Form of Sepration | Upto 2B/3B |
| Type Tested for | Short Time Current withstand Temperature Rise Degree of Protection |
| Bus Bar | Aluminium or Copper |
| Feeder Configuration | fix type |
| Cooling | Natural / Forced |
| De-tuning | Conventional or 5.67%-7% or 14% |
| Switching | Contactor / Thysistor |

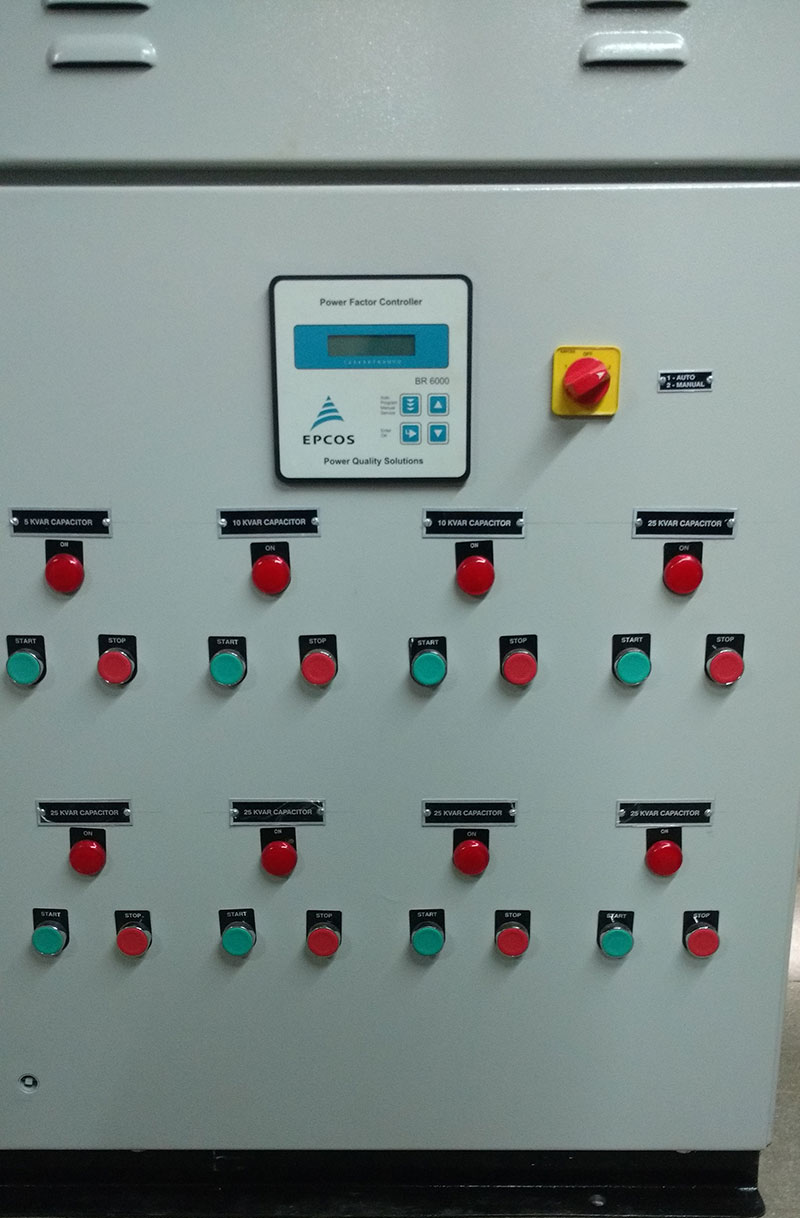

| PF Control | Both manual and Automation through APFC relay upto 20 stage |
